Design and Manufacture of
Captive Spring Loaded Screw Knob Fasteners
1.630.569.5007 www.srsindustries.com

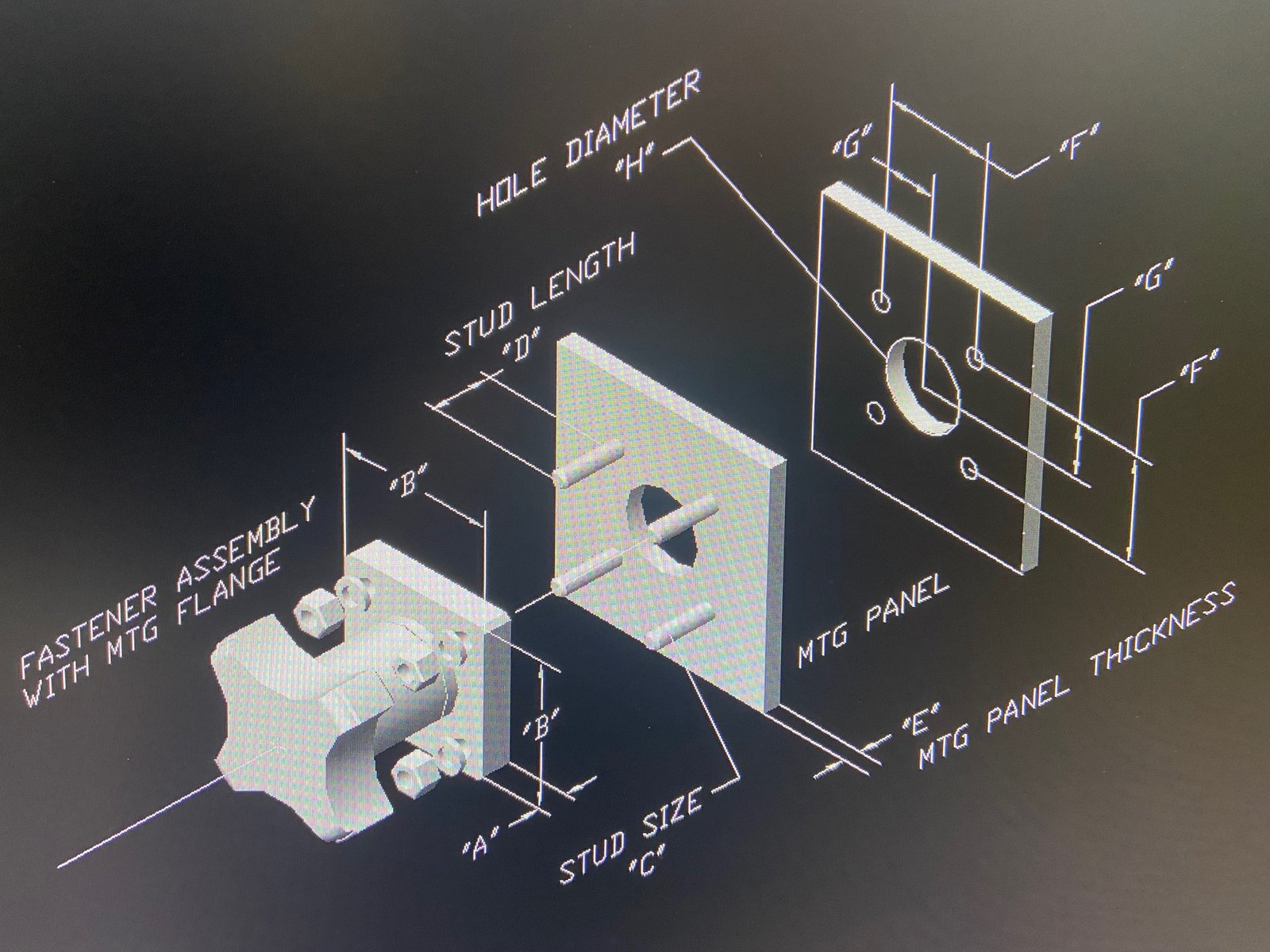

Flange Mount (5/8"-11) Data Sheet
Mounting Size 5/8-11 | A: .437 | B: 2.50| C: 5/16-18 UNC |D: 1.00| E: .312 | F: 1.852 |G: .926 | H: 1.406
Flange Mount (1/2"-13) Data Sheet
Mounting Size 1/2-13 | A: .437 | B: 2.50| C: 1/4-20 UNC |D: .875| E: .250 | F: 1.538 |G: .769 | H: 1.125
Flange Mount (3/8"-16) Data Sheet
Mounting Size 3/8-16 | A: .312 | B: 1.68| C: 10-32 UNF |D: .687| E: .187 | F: 1.187 |G: .594 | H: .875
Flange Mount (5/16"-18) Data Sheet
Mounting Size 5/16-18 | A: .187 | B: 1.37| C: 8-32 UNC |D: .56| E: .187 | F: .955 |G: .477 | H: 812
Flange Mount (1/4"-20) Data Sheet
Mounting Size 1/4-20 | A: .187 | B: 1.31| C: 6-32 UNC |D: .437| E: .187 | F: .911 |G: .455 | H: .812
Flange Mount (10-32) Data Sheet
Mounting Size 10-32 | A: .125 | B: 1.09| C: 4-40 UNC |D: .375| E: .125 | F: .735 |G: .368 | H: .656
